Plate flanges, blinds and spectacle blinds

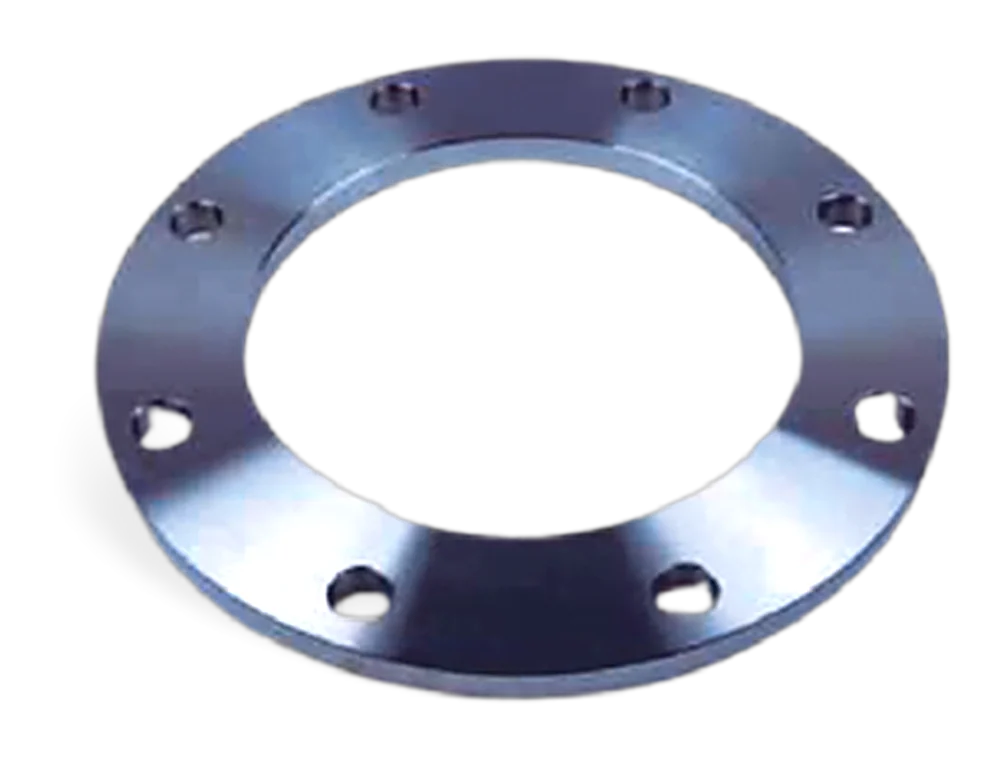

Large plate flanges, blind flanges, spectacle blinds, spacers and rings, cut, machined and drilled to standard or drawing.
About plate flanges and blinds
Plate flanges suit large water, gas and air lines where the standard allows them. Forged flanges to ASME B16.5 and B16.47 are made by Teshi Fittings.
Items
Send your GA drawing for a fabrication quote
Drawings, QAP and quantities to info@teshigroup.com, or use the form. We review and reply with price and schedule.
Flange face dimensions
- ODOutside diameter
- PCDBolt circle diameter
- BoltsNumber and size of holes
How a fabrication job runs
Drawing and QAP review
We check your GA drawings, QAP and specification, and raise queries before material is ordered.
Material and cutting
Plate is checked against mill certificates, then cut with heat numbers transferred to each part.
Rolling, fit-up and welding
Parts are rolled, fitted and welded to qualified procedures by qualified welders.
Testing and dispatch
NDT, any PWHT and dimensional checks are completed, then the job ships with its dossier.
Welding, NDT and documents
Welding
Procedures and welders qualified to ASME Section IX. WPS and PQR submitted for approval with the QAP.
NDT
- Radiography and ultrasonic testing
- Dye penetrant and magnetic particle testing
- Extent as per your QAP and design code
Heat treatment
Post-weld heat treatment where the code or specification requires it, with recorded charts.
Dossier
Material certificates, weld maps, NDT reports, dimensional reports and test records, compiled per item.
Plate materials
| Material | Specification |
|---|---|
| Structural and boiler plate | IS 2062 E250 / E350, ASTM A516 Gr 60 / 70, ASTM A36 |
| Chrome-moly plate | ASTM A387 Gr 11 / 22 |
| Stainless plate | ASTM A240 304L, 316L, 321, 310S |
| Super-austenitic and duplex | ASTM B625 904L, A240 S31254, S32205, S32750 (guide) |
| Titanium and nickel alloys | ASTM B265 titanium; B443, B424, B575 nickel-alloy plate (guide) |
Questions buyers ask
What is a spectacle blind?
A figure-8 plate with one solid and one open end, fitted between flanges. Turning it isolates or opens the line. ASME B16.48 covers standard sizes; larger ones are made to drawing.
Get a quotation from the manufacturer
Send your BOQ, drawing or tender reference. You deal directly with the manufacturer.
- Reply from our estimation team, usually within one working day
- Carbon steel to titanium on one order
- EN 10204 3.1 or 3.2 certificates, third-party inspection welcome
- ISO 9001:2015 certified and IBR approved, since 1971
Drawings and BOQ spreadsheets are easiest by email. Mention your project name.
